In addition, we can also customize these sockets as per the needs of the clients. BNC Connectors Socket, we are offering is suitable for connecting various electrical accessories.
All our BNC Connectors are available for various cable size like RG-58,RG-59,RG-174,RG-213,LMR-200,LMR-302,LMR-400 etc.
Features
- Strong to resist
- Quality material
- Smooth polishing
- Further Details
Technical Details
Technical Details
Construction Specification
- Connector Body : Brass
- Plating: Nickel
- Contact: Brass
- Plating: Gold
- Insulator: Delrin
- Gasket Seal: Silicon Rubber
- Coupling Types: Bayonet Nut Coupling (BNC)
- Termination Type: Compression Seal, Single crimp,
- Dual crimp, Twist-on
- Frequency: 0 to 4 GHZ
- Impedance: 50 or 75 ohms
- VSWR Max: 1.3:1
- Insertion Loss: .1db
- MAX Voltage: 500 VDC
- Temperature Range: -65°C to +165°C
- Coupling Retention: 80 LBS
- Cable Retention: 40 LBS
- Resistance: > 1 ohm

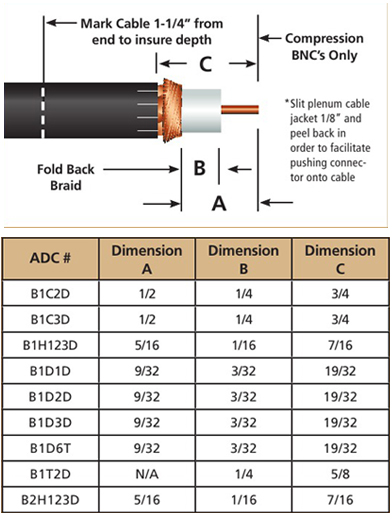

Dimensional Details
Ordering Information
Applications
- Aerospace and Defense
- Aviation controls
- Alternative Energy Source
- Smart grid
- Consumer
- Instrumentation equipment
- Industrial
- Instrumentation equipment
- Medical
- Dental xray equipment
- Telemetry
- Telecommunications
- Telecommunications hardware
