- Suited for wires up to 4mm²
- ETDC approved and of Reliable Quality
- Responsibility & Quick Response
- High Performance, High Quality
- Economical Round Shell Connectors
- Standard Cut Out 2 pin to 7 pin
- Customer Support and Guidance
Technical Details
Technical Details
- Breakdown Voltage:1000 V rms Min.
- Life (Mechanical):500 Cycles Min.
- Temperature range:-55°C/ + 125°C
- Technical Specifications : JSS 50812
- Current Rating:10 Amp Max. (RS-16)
- Voltage Rating : 250 V rms
- Insulation Resistance : 1000 Mega 0Hms Min.
- Contact Resistance : 5 Milli 0hms Max.
Ordering Information
Ordering Information

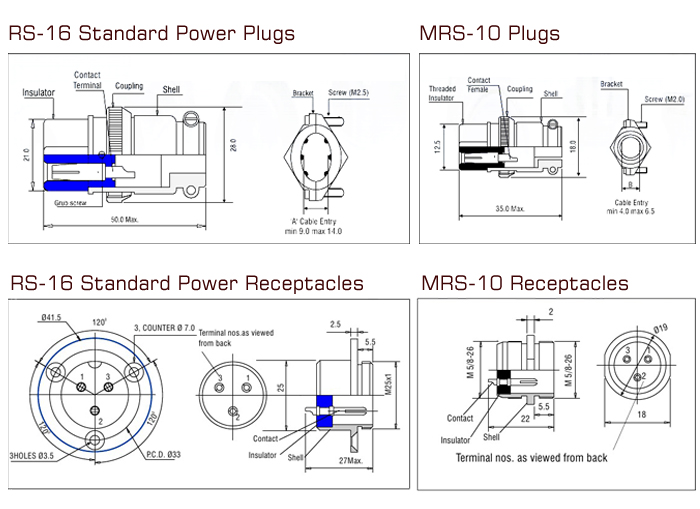

- 2Pin Round Shell Connector Male : RS-16-02-P
- 2Pin Round Shell Connector Female : RS-16-02-S
- 2Pin Mini Round Shell Connector Male Cover : RS-10-02-P
- 2Pin Mini Round Shell Connector Female Cover : RS-10-02-S
